The Dahlquist DQ-10 re-foam project

General discussion for all questions based in the home audio/video world.
User avatar
todd.brust
Posts: 754
Joined: Sat Sep 09, 2006 11:28 pm
Location: Minnesota

The Dahlquist DQ-10 re-foam project

Postby todd.brust » Sat Jul 21, 2007 8:41 pm

the 10" woofers needed to have the foam surround replaced so i finally got around to doing it...first time doing ti...thought i'd share it with everyone :)
here's the set-up not ideal, but it works


check out the 5 way!

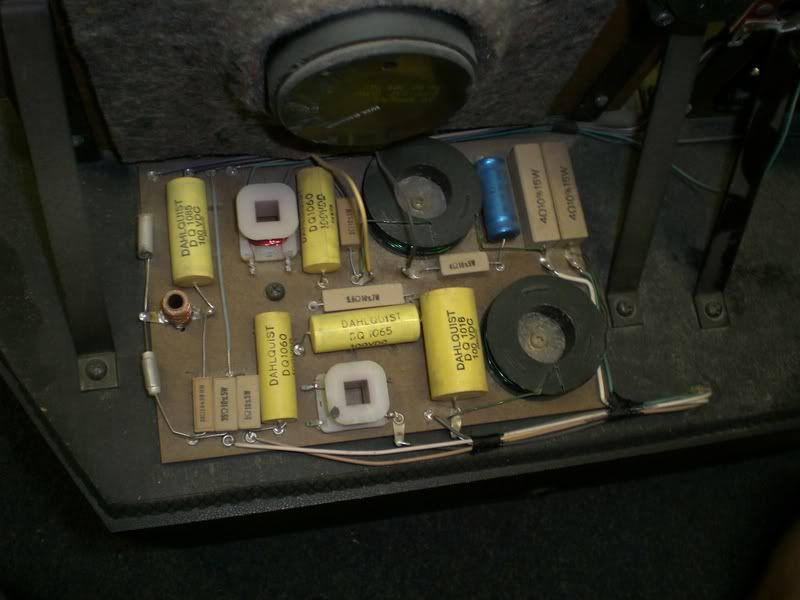

crossover

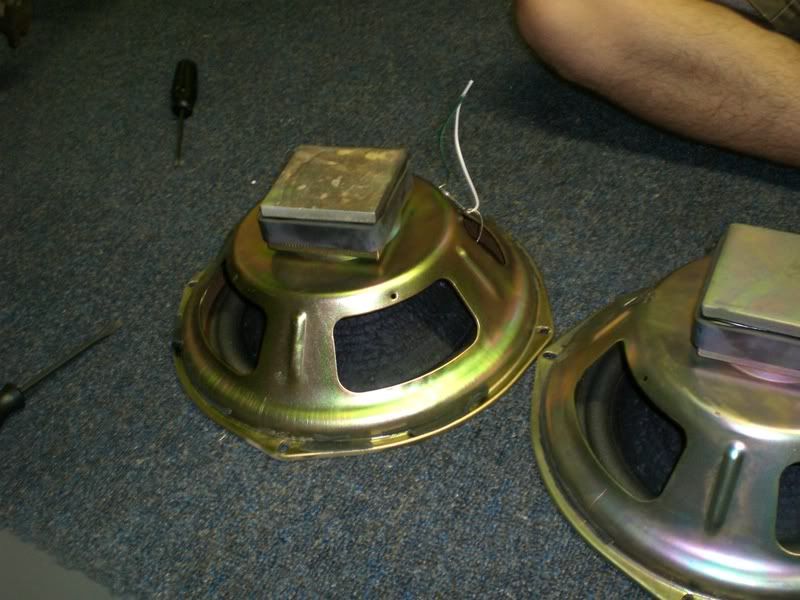

square magnets? whop does that?

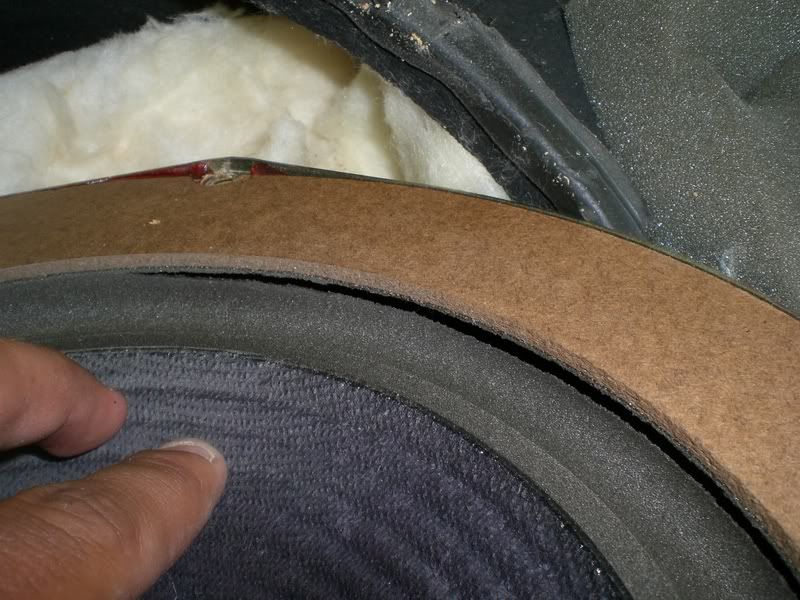

this is how old the surround is! ripped all along that edge!


as of now i scraped all the old foam off and i glued the new surround to the cone....still waiting for it to dry...tomorrow i will align the coil and glue the surround to the masonite board....it's kind of weird because the basket looks like it's amde for a 12" but the board compensates for it being a 10...and scraping the old rotted foam and glue off the bottom of that masonite was a *****! but i should be done tommorrow
